Smart-CO2 Sensor Demo

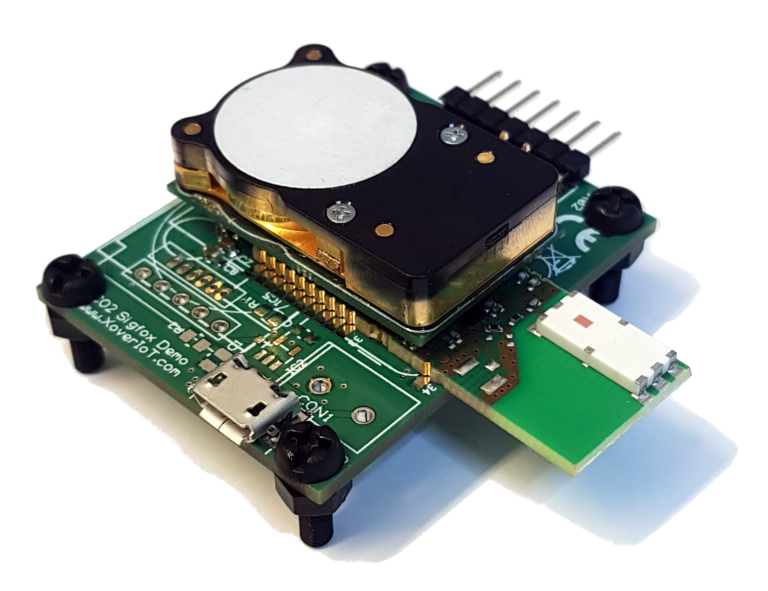

    SIGFOX-MOD1-C with GSS CozIR-LP2

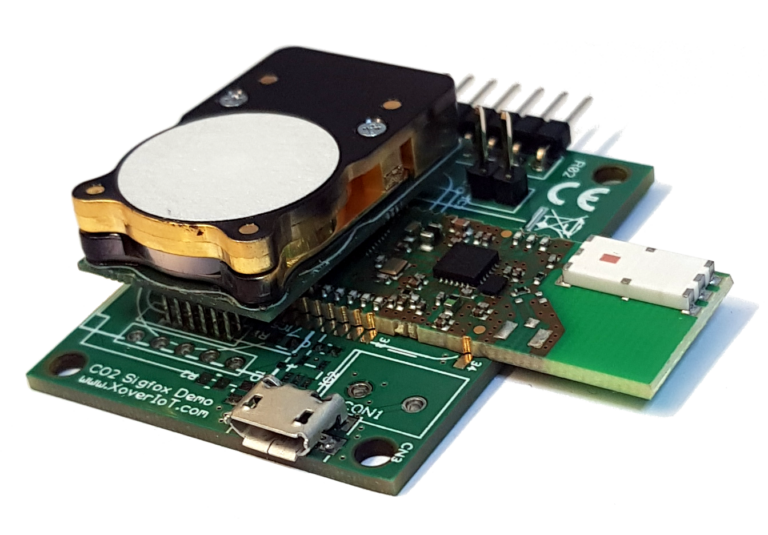

    SIGFOX-MOD1-C with GSS CozIR-LP

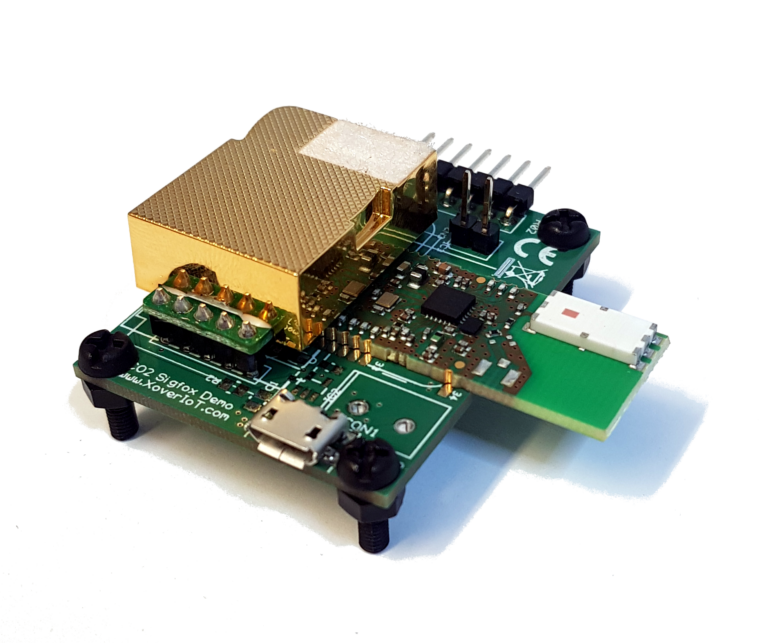

    SIGFOX-MOD1-C with Winsen MH-Z19

    With GSS CozIR Sensors

    With Winsen MH-Z19 Sensors

    Smart CO2 monitoring with different sensors

    Continuous monitoring of the CO2 concentration of the ambient air via the Sigfox cloud (or any proprietary subGHz network). The use case is mainly monitoring a remote environment or a location, where WiFi / LAN or BT / BLE is not available. The demo is equipped either
    • with Winsen Sensors ( e.g. MH-Z19 for cost sensitive applications ), or
    • GSS CozIR-LP Sensors ( Low Power or battery operated applications )
      • CozIR-LP2 (with UART and I2C)
      • CozIR-LP (with UART)
    The Sigfox connectivity is provided by the “Sigfox Verified” modem SIGFOX-MOD1-C (with integrated antenna), but maybe also equipped with any XoverIoT Sigfox or subGHz modem. Upon request XoverIoT may deliver the Sigfox CO2-Sensor Demo also with a one year Sigfox development license. The boards is powered either by a micro USB socket or 5Vdc /GND pins.

    Key features of the sensors

    Sensing CO2 concentration in an lab environment (open frame sensor demo) up to 10.000 ppm with a 30..50ppm typical measurement accuracy. On power-up, the sensors start taking measurements. Measurements can be cyclic or output on request.

    Please refer to the data sheets of the implemented sensor for details.

    Communication

    • Sigfox or proprietary subGHz (868 MHz) communication with control or monitoring service (direct or via cloud) for multiple sites
    • The boards provide an UART interface (U1_RX and U1_TX, Pins 9 and 10 of the SIGFOX-MOD1-C ) used to communicate with the module (and via the module microcontroller to the sensor), Baud Rate 115200, 1 Stop Bit, No Parity Bit
    • Please check the modem for details

    Additional features of the Sensor Demo board

    • +3V3 Output
    • In-circuit debugging/programming pins for STM32 on the modem for proprietary subGHz communication (SWDIO, SWCLK, NRST, GND, +3V3)
    pin description smart CO2 demo

    Sigfox cloud service

    • The Sigfox smart cloud technology provides
      • Simultaneous monitoring of all sensor demo sites
      • Central control of CO2 thresholds
    • Alarm on mobile device, if thresholds are reached
    • Documentation of daily status
    • No WLAN necessary
    • Simple setup
    live data of a device

    Customizations

    • LoRaWAN instead of Sigfox
    • Customized thresholds for CO2 indication / alarm
    • Adjustable transmission-rate and transmission triggering ( adjustable sending schedule, on value change, on alarm )
    • Operation up to 10.000 ppm possible
    • Optional additional sensors, e.g. temperature or atmospheric pressure
    • Remote setting of alarm threshold
    • Housings
    • any other CO2 sensors of other suppliers
